The world’s fastest commercially available tube perforation machine, engineered for precision, efficiency, and high-volume production.
SANDERSON TPM4
The Sanderson TPM4 is the world’s fastest commercially available tube perforation machine, capable of punching over 5,200 accurately spaced holes in under a minute, in tubes ranging from 1.5" to 4". Designed for high-speed production environments, it delivers exceptional accuracy with minimal tube distortion.
​

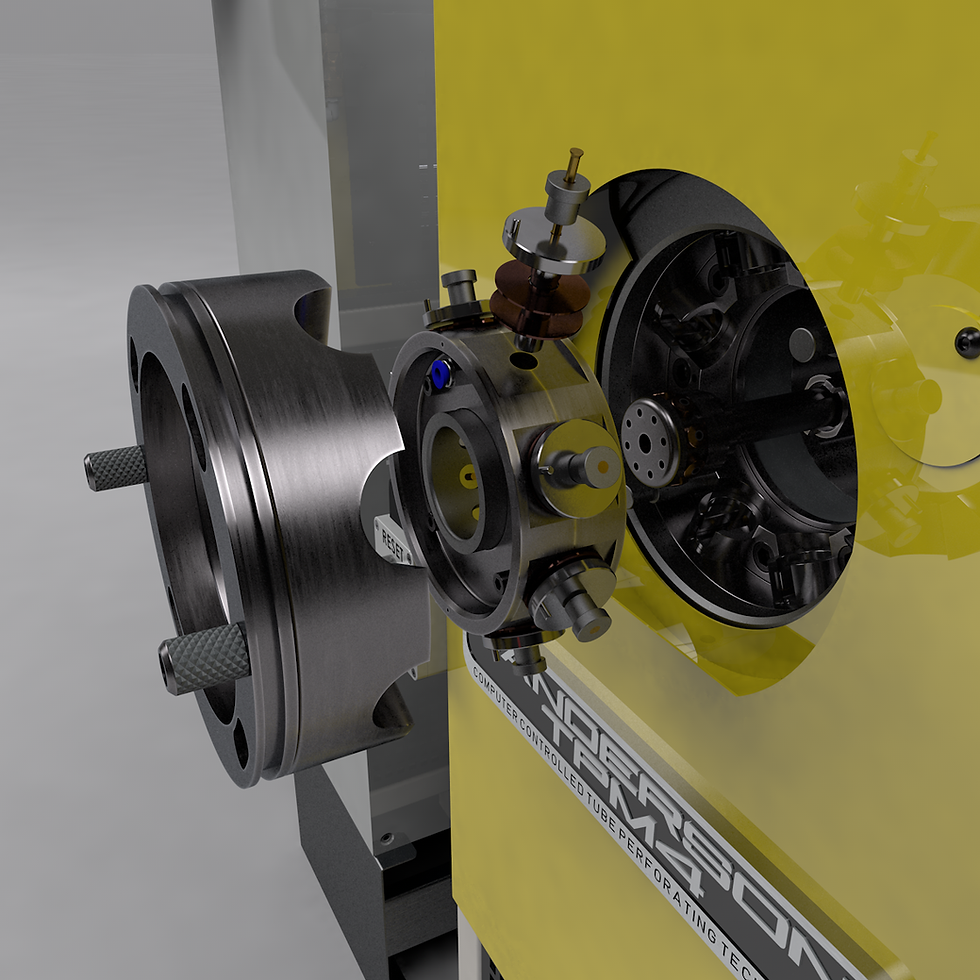

Engineered for efficiency and ease of use, enabling quick programming, fast setup, and tool changeovers in under two minutes—minimising downtime and maximising productivity.
​
Each Sanderson TPM4 is built to order using high-quality components and can be tailored to meet specific production requirements. We work closely with our customers to deliver customised solutions for their exact application needs.
​
See the TPM4 in action below.​​​​​
DIMENSIONS
Tube Diameter
Wall Thickness
Punch Diameter
Tube Length
22mm – 102mm (7/8" – 4")
0.5mm – 2.0mm
2mm – 8mm
100mm – 760mm
PERFORMANCE
Maximum Speed
Punches per Head
Perforating Zones
Stroke Length
6,400 holes per minute
8
5
6mm
MATERIALS & POWER
Materials
Power Supply
Machine Weight
Working Area
Operating Temperature
Mild steel, Stainless steel
480V / 380V (3 phase)
1200kg
3m x 4m (10' x 13')
0°–40°C
TECHNICAL SPECIFICATIONS
